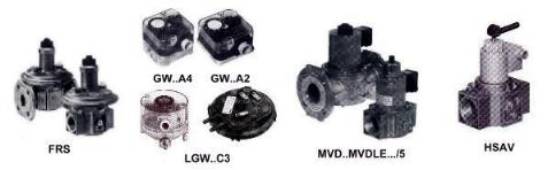

  Pressure Regulator

Model

Rp (inch)

DN (mm)

P1 max (mbar)

P2 max (mbar)

delivery standard*

FRS 503...520

3/4"...2"

-

500

2.5-150

# 4 blue spring

FRS  5040...5150

-

40-150

500

2.5-150

# 4 blue spring

available spring  (mbar)*

#1 brown

#2 white

#3 orange

#4 blue

#5 red

#6 yellow

#7 black

#8 rose

2.5-9

5-13

5-20

10-30

25-55

30-70

60-110

100-150

  Air / Gas Pressure Switch

Model
3; 10; 50; 150; 500

setting range (mbar)

switch differential
p(mbar)

air

gas

max. operating
Pressure (mbar)

LGW  3...150

0.4-3; 1-10; 2.5-50; 30-150

0.35, 0.5, 1, 3

air

-

500

GW   3...500

0.4-3; 1-10; 2.5-50; 30-150; 100-500

0.35, 0.5, 1, 3



gas

500, 1000

  Solenoid Valve (single stage)

Model

Operation

Rp (inch)

DN (mm)

P1 max (mbar)

MVD 203...225/5;  2020..2100/5

fast open fast close

3/8"-2.5"

20-100

200, 360

MVDLE  203..225/5; 2020..2100/5

slow open fast close

3/8"-2.5"

20-100

200, 360

MVD 503...525/5;  5020..5100/5

fast open fast close

3/8"-2.5"

20-100

500

MVDLE 5020..5100/5;  5020..5100/5

slow open fast close

3/8"-2.5"

20-100

500

  Manual shut-off Valve & Vent Valve

Model

Operation

Rp (inch)

DN (mm)

P1 max

HSAV 507..520/5; 5065..5100/5

Closed when de-energize,
opens manually only

3/4"-2"

65-100

500 mbar

LGV    507 & LGV 5020

Vent valve

3/4"

20

500 mbar

  Double solenoid Valve ZRD (two stages) with part load and main flow adjustment

Model

Operation

Rp (inch)

DN

P1 max

ZRD       407..420/5; 4020..4050/5

fast opening

3/4"-2"

20-50

360 mbar

ZRDLE   407..420/5;  4020..4050/5

slow opening

3/4"-2"

20-50

360 mbar

  Double solenoid Valve  DMV (two one-stages in one unit) closed when de-energized, and main flow adjustment

Model

Operation

Rp (inch)

DN (mm)

P1 max

DMV-D    503..525/11

fast opening

3/8"-2.5"

-

500 mbar

DMV-D   5040..5125/11

fast opening

-

40-125

500 mbar

DMV-DLE 503..525/11

slow opening

3/8"-2.5"

-

500 mbar

DMV-DLE 5040..5125/11

slow opening

-

40-125

500 mbar

  Multi-bloc MB-DLE compact unit of filter, regulator, valves and min. pressure switch

Model

Version

Outlet P2

 pressure

Operation

Rp" (inch)

P1 max

mbar

P2 pressure

mbar

MB-DLE  403

B01

S20

slow opening

3/8"-2"

360

4-20

MB-DLE  405..412

B01

S20

S50

slow opening

1/2"- 1 1/4"

360

4-20

4-50

MB-DLE  415..420

B01

S20

S50

slow opening

1 1/2"- 2"

360

  4-20

20-50

MB-DLE  405..412

B07

S22

slow opening

1/2"-1 1/4"

360

4-20

  Multi-bloc MB-ZRDDLE compact unit of filter, regulator, 2-stages valves and min. pressure switch

Model

Version

Outlet P2

pressure

Operation

Rp (inch)

P1 max

mbar

P2 max

mbar

MB-ZRDLE  405..412

B01

S20

S50

slow opening

1/2"- 1 1/4"

360

4-20

4-50

MB-ZRDLE  415..420

B01

S20

S50

slow opening

1 1/2"- 2"

360

4-20

20-50

MB-ZRDLE  405..412

B07

S22

slow opening

1/2"- 1 1/4"

360

4-20

B01: standard  version ;   B07 :  with integrate  by-pass  valve .
S20 / S22: regulating pressure P2=4-20 mbar;  S50 / S52 P2=4-50 mbar

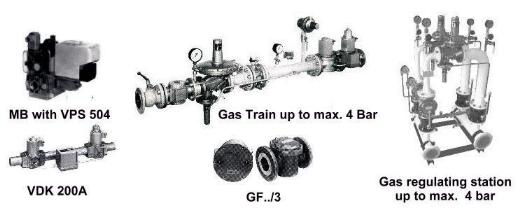

  Valve proving systems VPS & VDK

Model

Operation

Test pressure rise

P1 max

VPS 504 S01

for multi-bloc DMV, MB, MV

20 mbar

500 mbar

VDK 200 A S02

for 2 individual valves

40 mbar

360 mbar

  Gas filter

Model

Rp (inch)

DN (mm)

P1 max

GF 505...520/1

1/2"-2"

-

0.5 bar

GF 40 040...100/3

-

40-100

4 bar

GF 40125...40200

-

125-200

4 bar

  Gas regulating Station (natural gas ) single & twin (100% standby mode) version

Capacity m3/h

Operation

Inlet (mm)

Outlet (mm)

P1 max

P2 max

300

single / twin

DN 50..65

DN 65

1...4 bar

400 mbar

400

single / twin

DN 50..65

DN 80

1...4 bar

400 mbar

500

single / twin

DN 50..80

DN 100

1...4 bar

400 mbar

600

single / twin

DN 65..80

DN 100

1...4 bar

400 mbar

notes : these are the common types used in Asia market, please feel free to contact KINGSTEC  for your further information.
